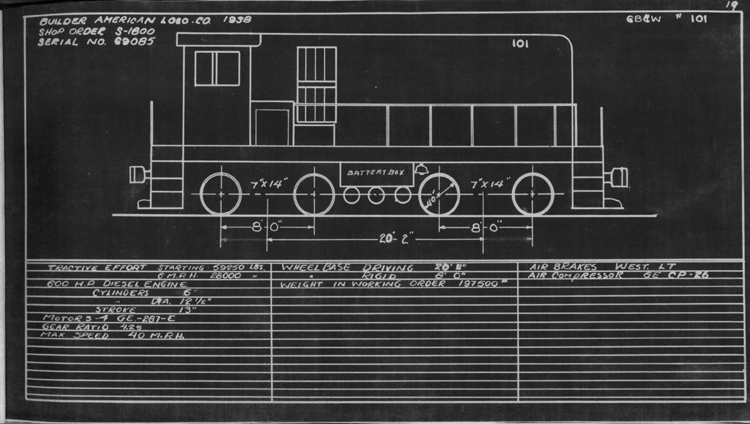

Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


 [ Index ]

BUILDER AMERICAN LOCO CO. 1938
SHOP ORDER S-1800
SERIAL NO. 69085
GB&W #101

From the collection of Andy Laurent.
TRACTIVE EFFORT STARTING 59250 LBS. WHEELBASE DRIVING 20'-4" AIR BRAKES WEST LT
TRACTIVE EFFORT 6MPH 28000 LBS. WHEELBASE RIGID 8'-0" AIR COMPRESSOR GE CP-26
600 H.P. DIESEL ENGINE WEIGHT IN WORKING ORDER 197500#
CYLINDERS 6"
CYLINDER DIA. 12�"
CYLINDER STROKE 13"
MOTORS - 4 GE-287-E
GEAR RATIO 4.25
MAX. SPEED 40 M.P.H.
