GBW X50 / KGBW X60

Up ]



Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


 [ Index ]

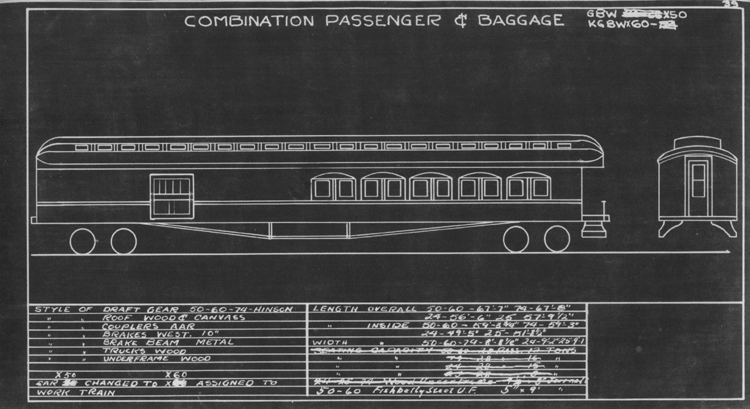

COMBINATION PASSENGER AND BAGGAGE GBW X24 - X25 X50
KGBW X60 - X74

From the collection of Andy Laurent.
STYLE OF DRAFT GEAR 50 - 60 - 74 HINSON LENGTH OVERALL 50-60- 67' 7" 74- 67' 6"
STYLE OF ROOF WOOD & CANVAS 24- 56' 6" 25- 57' 9 1/2"
STYLE OF COUPLERS AAR LENGTH INSIDE 50-60- 64' 8 1/2" 74- 64' 3"
STYLE OF BRAKES WEST. 10" 24- 49' 5" 25- 51' 8 1/2"
STYLE OF BRAKE BEAM METAL WIDTH INSIDE 50-60-74 8' 8 1/2" 24- 9' 2" 25- 9' 1"
STYLE OF TRUCKS WOOD SEATING CAPACITY 50-60 28 PASS. 12 TONS
STYLE OF UNDERFRAME WOOD SEATING CAPACITY 74 28 PASS. 16 TONS
  SEATING CAPACITY 24 28 PASS. 15 TONS
CAR X56 CHANGED TO X60 ASSIGNED TO SEATING CAPACITY 25 28 PASS. 8 TONS
WORK TRAIN 24 - 25 - 74 Wood Underframe 4 1/4" x 8" Journal
  50 -60 FISHBELLY STEEL U.F. 5" x 9" Journal
