GBW X3

Up ]

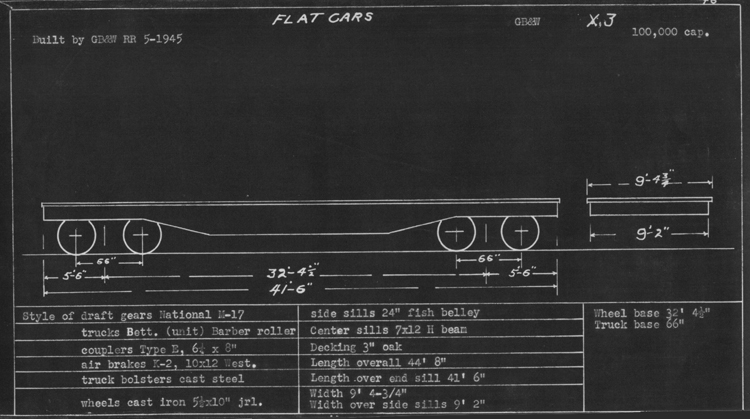

 Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


 [ Index ]

Built by GB&W 5-1945 FLAT CARS GB&W X-3
100,000 cap.

From the collection of Andy Laurent.
Type of draft gears National M-17 Side sills 24" fish belly Wheel base 32'-4 1/2"
Style of trucks Bett. (unit) Barber roller Center sills 7x12 H beam Truck base 66"
Style of couplers Type E, 6 1/4 x 8" Decking 3" oak
Style of air brakes K-2, 10x12 West. Length overall 44'-8"
Style of truck bolsters cast steel Length over end sill 41'-6"
Style of wheels cast iron 5 1/2" x 10" journals Width 9'-4 3/4"
  Width over side sills 9'-2"
