GBW 20- / KGB 75-

Up ]



Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


KGB&W #76 (originally KGB&W #23) is preserved at the preserved at the Mid-Continent Railway Museum in North Freedom, Wis.  GB&W #21 (originally coach #52) is preserved at the National Railroad Museum in Green Bay, Wis.

 [ Index ]

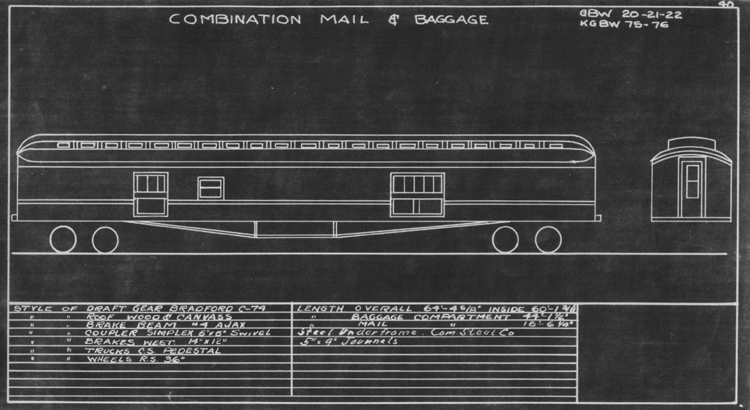

COMBINATION MAIL AND BAGGAGE GBW 20 - 21 - 22
KGB 75 - 76

From the collection of Andy Laurent.
STYLE OF DRAFT GEAR BRADFORD C-74 LENGTH OVERALL 64'-4 5/8" INSIDE 60'-1 3/8"
STYLE OF ROOF WOOD & CANVAS LENGTH OF BAGGAGE COMPARTMENT 44'-1 1/2"
STYLE OF BRAKE BEAM #4 AJAX LENGTH OF MAIL COMPARTMENT 15'-6 1/4"
STYLE OF COUPLER SIMPLEX 5"X5" SWIVEL STEEL UNDERFRAME COM. STEEL CO.
STYLE OF BRAKES WEST. 14" X 12" 5" X 9" JOURNALS
STYLE OF TRUCKS CS PEDESTAL
STYLE OF WHEELS RS 36"
