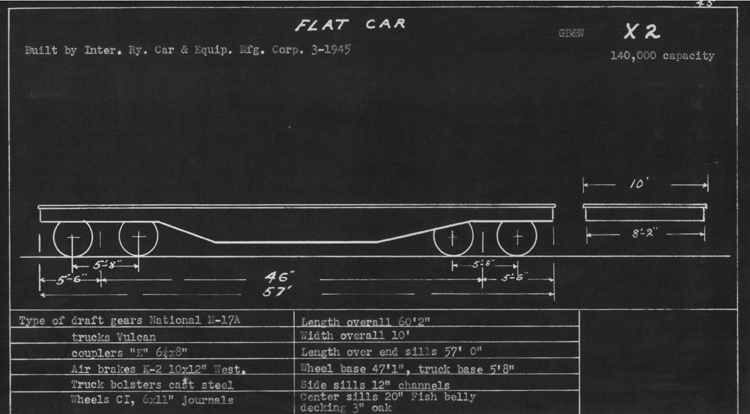

Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


 [ Index ]

Built by Inter. Ry. Car& Equip. Mfg. Co. 3-1945 FLAT CAR GB&W X-2
140,000 capacity

From the collection of Andy Laurent.
Type of draft gears National M-17A Length overall 60'-2"
Type of trucks Vulcan Width overall 10'
Type of couplers "E" 6 1/4" x 8" Length over end sills 57'-0"
Type of air brakes K-2 10"x12" West. Wheel base 47'-1" truck base 5'-8"
Type of truck bolsters cast steel Side sills 12" channels
Type of wheels CI 6x11" journals Center sills 20" fish belly
  Decking 3" oak
