Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams
KGBW #398 was originally numbered #45 and was sold to the Ahnapee & Western in February 1949.

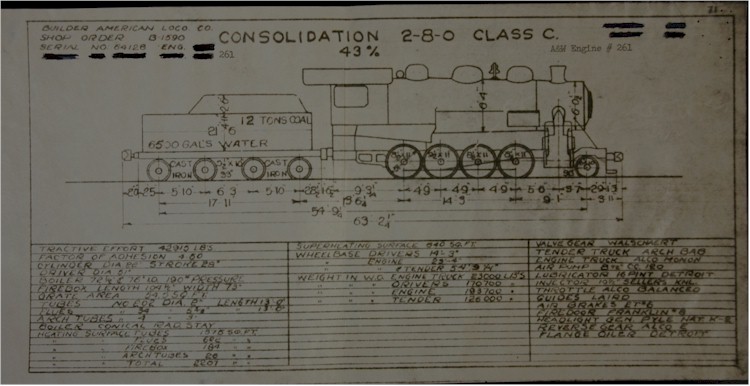

| BUILDER AMERICAN LOCO CO. SHOP ORDER B-1590 SERIAL NUMBER 64128 261 | CONSOLIDATION 2-8-0 CLASS C 43% | A&W ENGINE #261 |
 From the collection of Andy Laurent. | ||
| TRACTIVE EFFORT 42,915 LB'S. | SUPERHEATING SURFACE AREA 540 SQ.FT. | VALVE GEAR WALSCHAERT |
| FACTOR OF ADHESION 4.50 | WHEELBASE DRIVERS 14'-3" | TENDER TRUCKS ARCH BAR |
| CYLINDER DIA. 22" STROKE 28" | WHEELBASE ENGINE 23'-4" | ENGINE TRUCK ALCO MONON |
| DRIVER DIA. 51" | WHEELBASE ENGINE & TENDER 54'-9 1/4" | AIR PUMPS 8-8�" CC #120 |
| BOILER 72� & 76" I.D. 190# PRESSURE | WEIGHT IN W.O. ENGINE TRUCK 23000 LB'S. | LUBRICATOR 16 PINT DETROIT |
| FIREBOX LENGTH 104�" WIDTH 73" | WEIGHT IN W.O. DRIVERS 170700 LB'S. | INJECTOR 10 1/2" SELLERS KNL. |
| GRATE AREA 54.5 SQ.FT. | WEIGHT IN W.O. ENGINE 193700 LB'S. | THROTTLE ALCO BALANCED |
| TUBES NO. 202 DIA. 2" LENGTH 13'-0" | WEIGHT IN W.O. TENDER 126000 LB'S. | GUIDES LAIRD |
| FLUES NO. 34 DIA. 5 3/8" LENGTH 13'-0" | AIR BRAKES ET #6 | |
| ARCH TUBES NO. 4 DIA. 3" | FIREDOOR FRANKLIN #8 | |
| BOILER CONICAL RAD. STAY | HEADLIGHT GEN. PYLE NAT. K-2 | |
| HEATING SURFACE TUBES 1975 SQ.FT. | REVERSE GEAR ALCO E | |
| HEATING SURFACE FLUES 622 SQ.FT. | FLANGE OILER DETROIT | |
| HEATING SURFACE FIREBOX 184 SQ.FT. | ||
| HEATING SURFACE ARCH TUBES 26 SQ.FT. | ||
| HEATING SURFACE TOTAL 2207 SQ.FT. | ||
