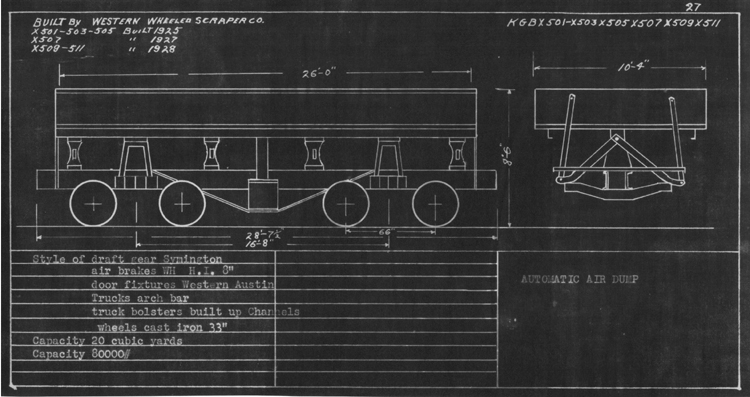

Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams
| BUILT BY WESTERN WHEELED SCRAPER CO. X501 - 503 - 505 BUILT 1925 X507 BUILT 1927 X509 - 511 BUILT 1928 | KGB X501-X503 X505 X507 X509 X511 | |
 From the collection of Andy Laurent. | ||
| Style of draft gear Symington | AUTOMATIC AIR DUMP | |
| Style of air brakes WH H.I. 8" | ||
| Style of door fixtures Western Austin | ||
| Style of trucks arch bar | ||
| Style of truck bolsters built up channels | ||
| Style of wheels cast iron 33" | ||
| Capacity 20 cubic yards | ||
| Capacity 80000# | ||
