Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams

KGB&W #8020 is preserved at the preserved at the Mid-Continent Railway Museum in North Freedom, Wis.

[ Previous Page ] [ Next Page ]  [ Index ]

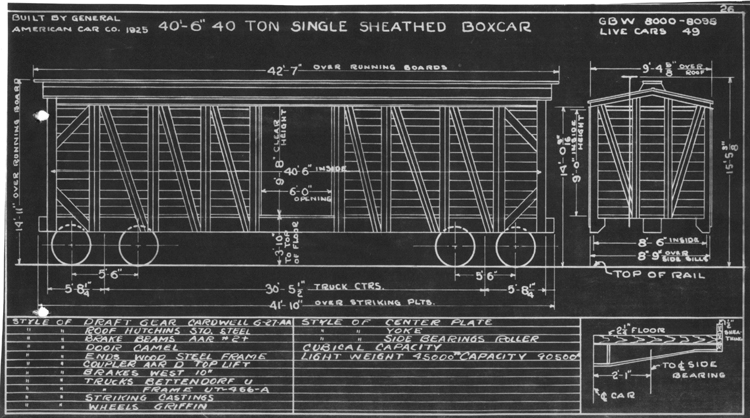

BUILT BY GENERAL AMERICAN CAR CO. 1925	40'-6" 40 TON SINGLE SHEATHED BOXCAR	GBW 8000-8098 LIVE CARS 49
From the collection of Andy Laurent.
STYLE OF DRAFT GEAR CARDWELL G 27 AA	STYLE OF CENTER PLATE
STYLE OF ROOF HUTCHINS STD. STEEL	STYLE OF YOKE
STYLE OF BRAKE BEAMS AAR #2+	STYLE OF SIDE BEARINGS ROLLER
STYLE OF DOOR CAMEL	CUBICAL CAPACITY
STYLE OF ENDS WOOD STEEL FRAME	LIGHT WEIGHT 45000# CAPACITY 90500#
STYLE OF COUPLER ARA D TOP LIFT
STYLE OF BRAKES WEST 10"
STYLE OF TRUCKS BETTENDORF U
STYLE OF TRUCKS FRAME UT-456-A
STYLE OF STRIKING CASTINGS
STYLE OF WHEELS GRIFFIN
