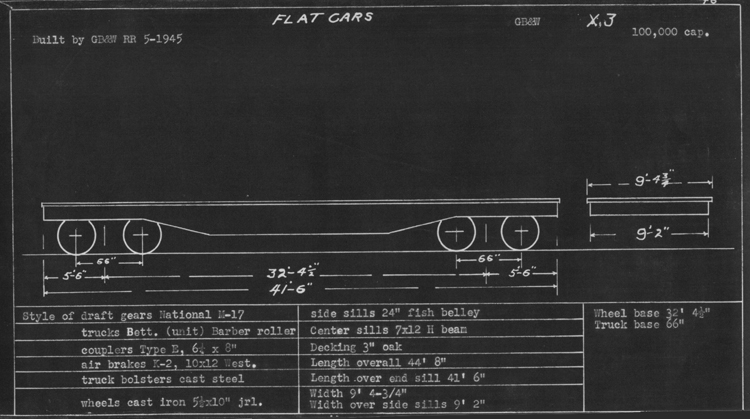

Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams
| Built by GB&W 5-1945 | FLAT CARS | GB&W X-3 100,000 cap. |
 From the collection of Andy Laurent. | ||
| Type of draft gears National M-17 | Side sills 24" fish belly | Wheel base 32'-4 1/2" |
| Style of trucks Bett. (unit) Barber roller | Center sills 7x12 H beam | Truck base 66" |
| Style of couplers Type E, 6 1/4 x 8" | Decking 3" oak | |
| Style of air brakes K-2, 10x12 West. | Length overall 44'-8" | |
| Style of truck bolsters cast steel | Length over end sill 41'-6" | |
| Style of wheels cast iron 5 1/2" x 10" journals | Width 9'-4 3/4" | |
| Width over side sills 9'-2" | ||
