GBW 106- / KGB 86

Up ]



Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


Coach #109 is preserved at the Illinois Railway Museum in Union, Ill.

Back ] Next ]  [ Index ]

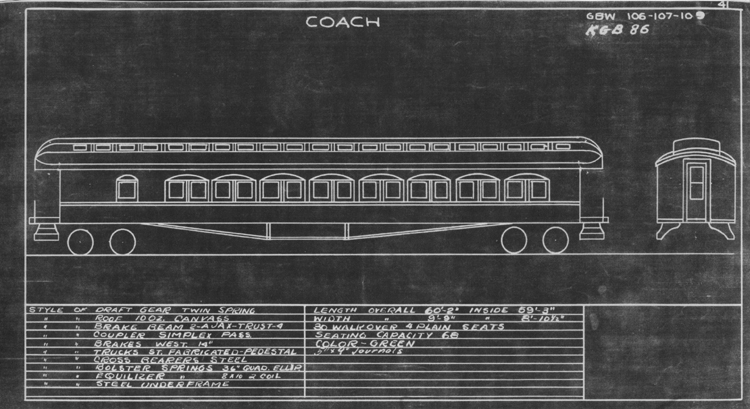

COACH GBW 106 - 107 - 109
KGB 86

From the collection of Andy Laurent.
STYLE OF DRAFT GEAR TWIN SPRING LENGTH OVERALL 60'-2" INSIDE 59'-3"
STYLE OF ROOF 10 OZ. CANVAS WIDTH OVERALL 9'-9" INSIDE 8'-10 1/2"
STYLE OF BRAKE BEAM 2-AJAX-TRUST-4 30 WALKOVER 4 PLAIN SEATS
STYLE OF COUPLER SIMPLEX PASS. SEATING CAPACITY 68
STYLE OF BRAKES WEST. 14" COLOR - GREEN
STYLE OF TRUCKS ST. FABRICATED PEDESTAL 5" X 9" JOURNALS
STYLE OF CROSS BEARERS STEEL
STYLE OF BOLSTER SPRINGS 36" QUAD. ELLIP.
STYLE OF EQUILIZER SPRINGS 8x10 2 COIL
STYLE OF STEEL UNDERFAME
