Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams

[ Back ] [ Next ]  [ Index ]

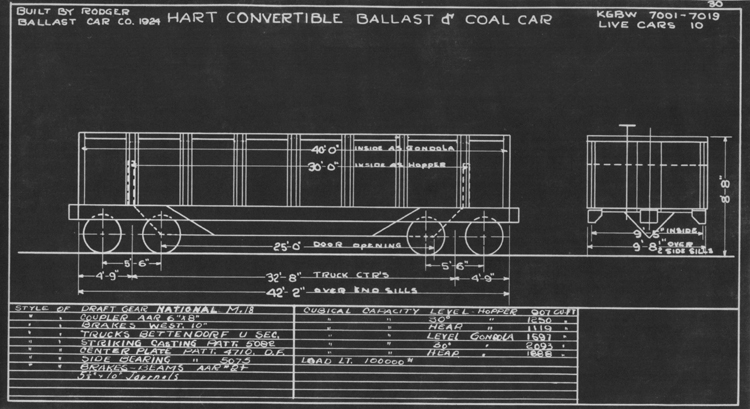

BUILT BY RODGER
BALLAST CAR CO. 1924		 HART CONVERTIBLE BALLAST & COAL CAR KGB 7001-7019
LIVE CARS 10

From the collection of Andy Laurent.
STYLE OF DRAFT GEAR NATIONAL M.18 CUBICAL CAPACITY LEVEL HOPPER 907 CU.FT.
STYLE OF COUPLER AAR 6" X 8" CUBICAL CAPACITY 30° HOPPER 1250 CU.FT.
STYLE OF BRAKES WEST. 10" CUBICAL CAPACITY HEAP HOPPER 1119 CU.FT.
STYLE OF TRUCKS BETTENDORF U SEC. CUBICAL CAPACITY LEVEL GONDOLA 1597 CU.FT.
STYLE OF STRIKING CASTING PATT. 5082 CUBICAL CAPACITY 30° GONDOLA 2093 CU.FT.
STYLE OF CENTER PLATE PATT. 4710 D.F. CUBICAL CAPACITY HEAP GONDOLA 1888 CU.FT.
STYLE OF SIDE BEARING PATT. 5075 LOAD LT. 100000#
STYLE OF BRAKE BEAMS AAR #2+
5 1/2" X 10" JOURNALS
