Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


Back ] Next ]  [ Index ]

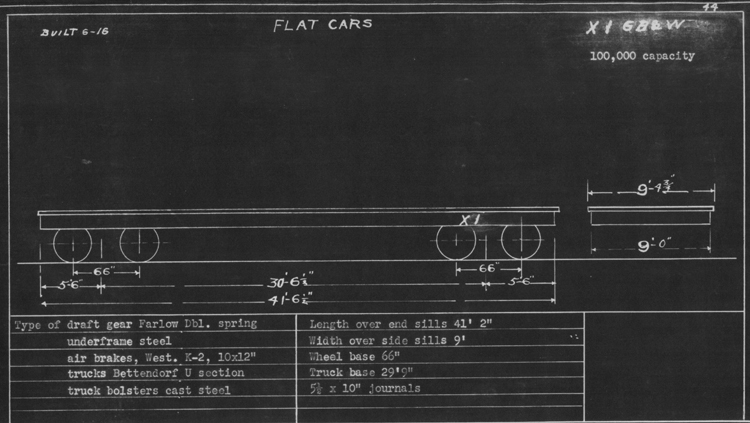

BUILT 6-16 FLAT CARS X-1 GB&W
100,000 capacity

From the collection of Andy Laurent.
Type of draft gear Farlow dbl. Spring Length over end sills 41'-2"
Style of underframe steel Width over side sills 9'
Style of air brakes West. K-2 10"x12" Wheel base 66"
Style of trucks Bettendorf U section Truck base 29'-9"
Style of truck bolster cast steel 5 1/2" x 10" journals
