Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


Back ] Next ]  [ Index ]

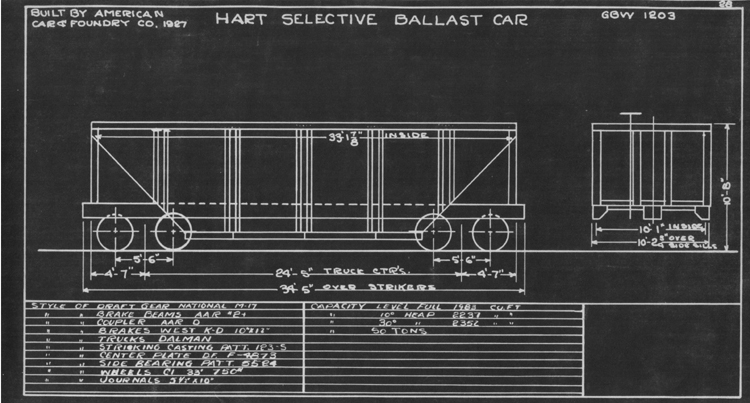

BUILT BY AMERICAN
CAR & FOUNDRY CO. 1927
HART SELECTIVE BALLAST CAR GBW 1203

From the collection of Andy Laurent.
STYLE OF DRAFT GEAR NATIONAL M-17 CAPACITY LEVEL FULL 1983 CU.FT.
STYLE OF BRAKE BEAMS AAR #2+ CAPACITY 10° HEAP 2237 CU.FT.
STYLE OF COUPLERS AAR D CAPACITY 30° HEAP 2352 CU.FT.
STYLE OF BRAKES WEST K-D 10" X 12" CAPACITY 50 TONS
STYLE OF TRUCKS DALMAN
STYLE OF STRIKING CASTING PATT. 123-5
STYLE OF CENTER PLATE D.F. F-4873
STYLE OF SIDE BEARING PATT. 5524
STYLE OF WHEELS CI 33" 750#
STYLE OF JOURNALS 5 1/2" X 10"
